Ebike Bicycle Conversion Kit Bluetooth 48V 500W 1000W 1500W 20

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Brushless Non-gear Hub Motor

Brand Name CSC

Size 20/24/26/27.5/28/29inch,700C

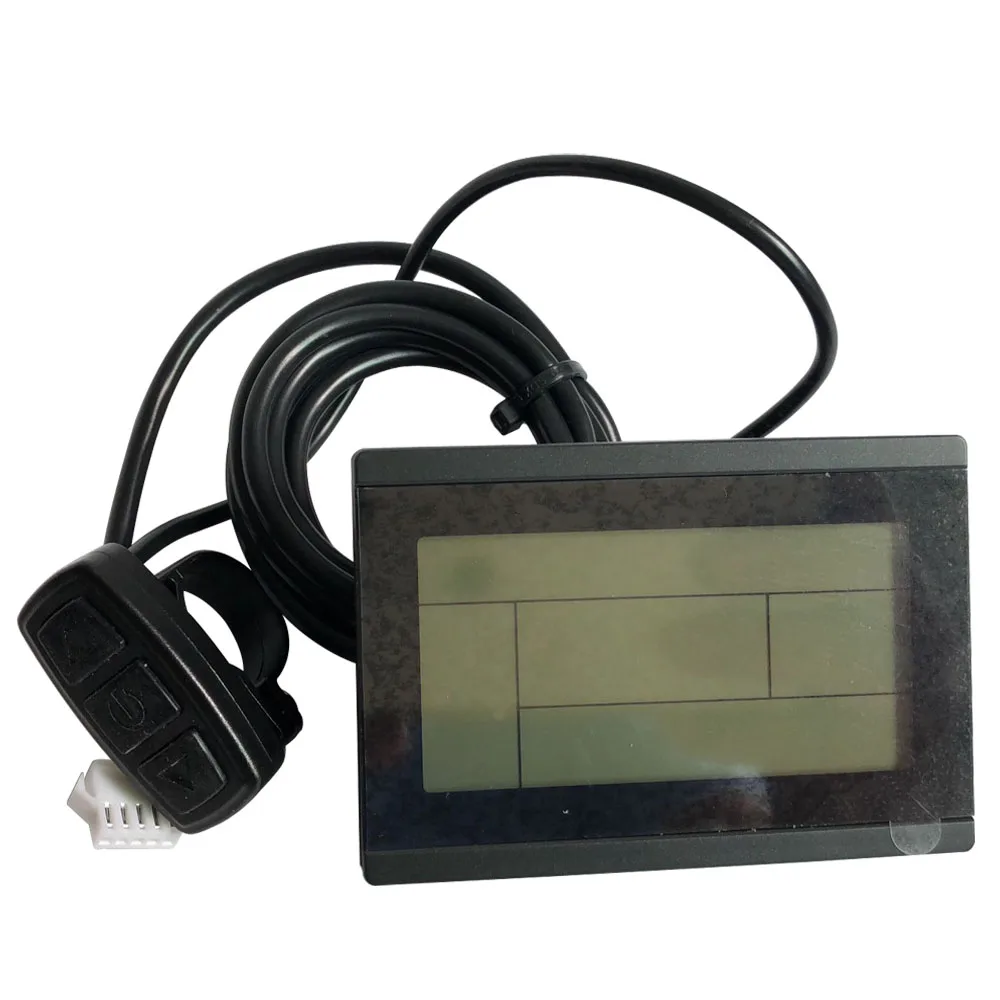

LCD3 Bluetooth means LCD3 Display and Bluetooth Function controller

LCD8 Bluetooth means LCD8 Display and Bluetooth Function controller

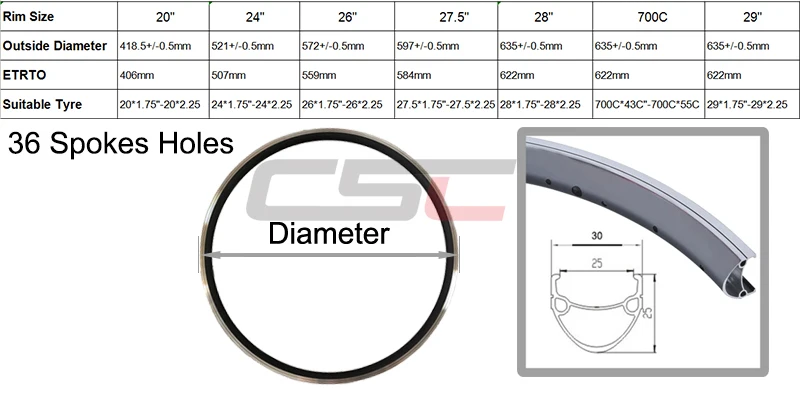

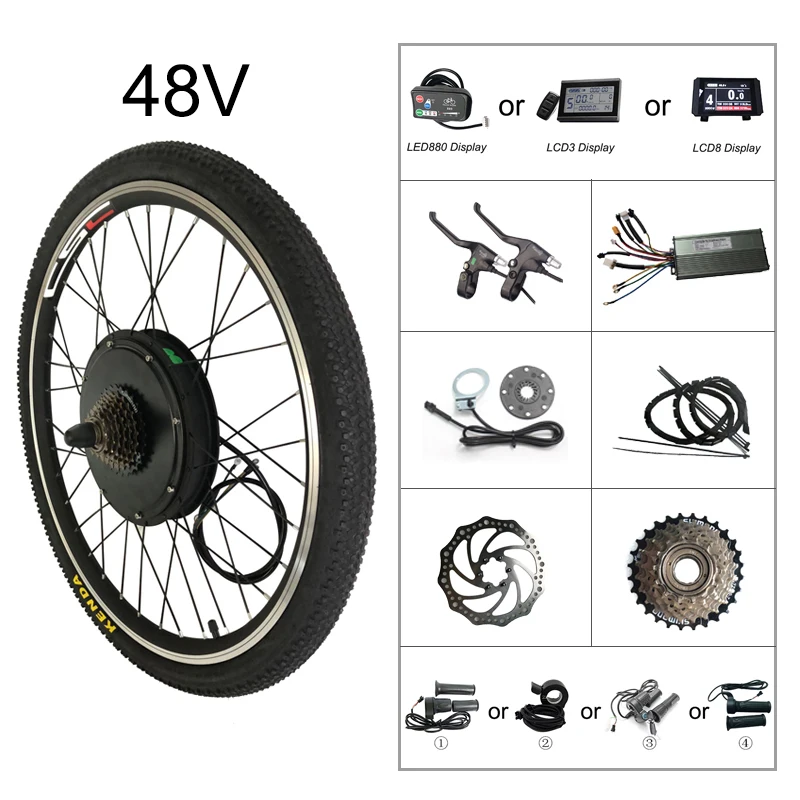

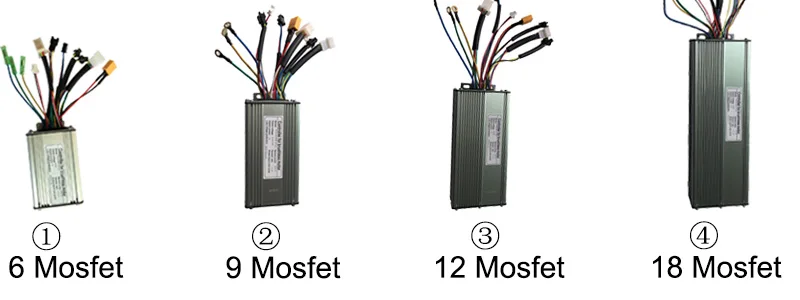

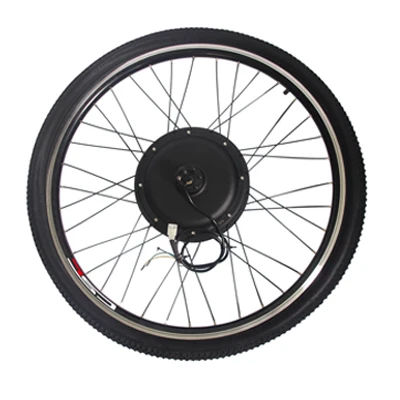

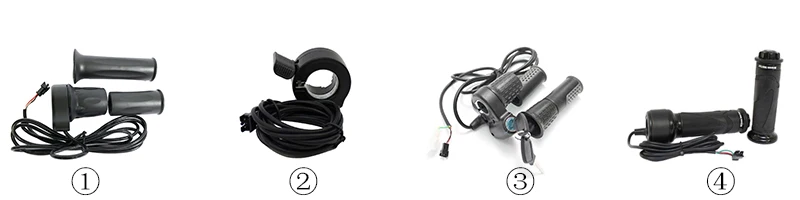

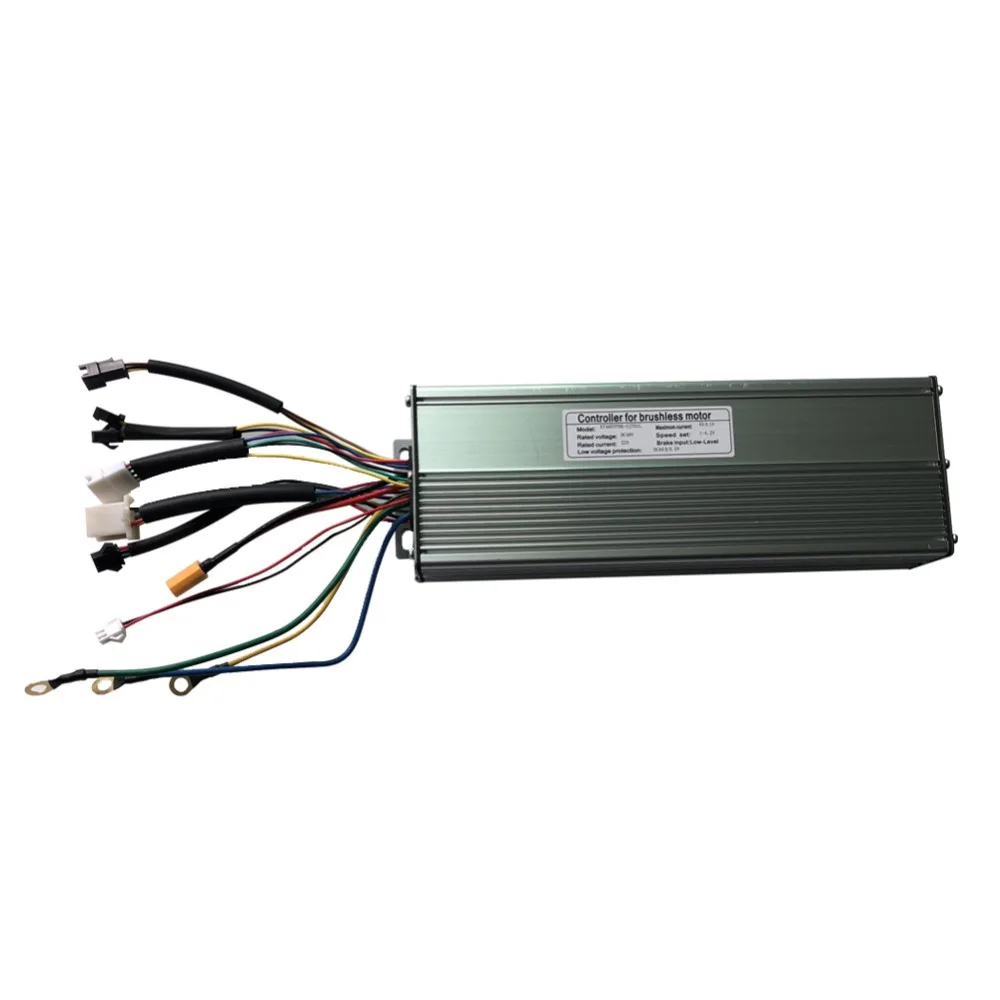

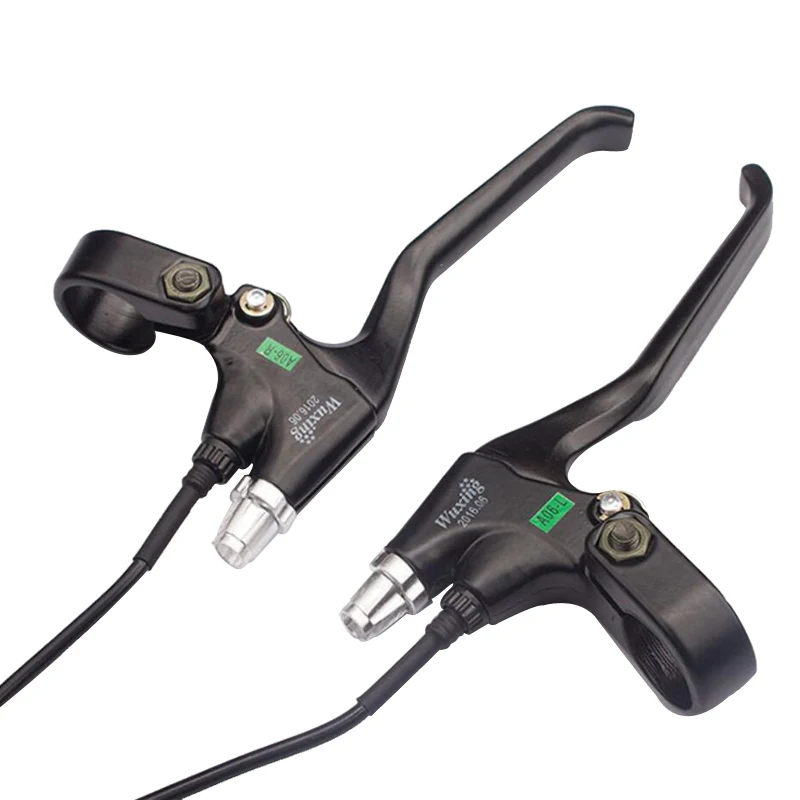

if you need battery, please click Battery photo, and then buy it. Packing List Noted: Battery not included Motorwheel Motorwheel（20/24/26/27.5/28/29inch 700C） Controller DC Controller Controller Bag Controller Bag Brakelever 2xPowercut-offBrakelever Display No Displayor LED880 or LCD3 or LCD8 (Option） Throttle Twist Throttle PAS 8 Magnet PedalAssistant Sensor flywheel Thread-on freewheel 7S speed Disc brake 160mmDisc brake Front Conversion Kitinclude tire, disc brake Rear Conversion Kitinclude tire,freewheel, disc brake Once you purchase an order, please leave a note thatwhatTyre size We have the following sizes wheel: Front wheel or Rear wheel size :20inch ，24inch，26inch ，27.5inch ，28inch ，29inch，700C Motor Wheel 1. Full Speed:48V 500W about40-50km/h, 48V 1000W about 45-55km/h, 48V 1500W about 50-60km/h, 2. Hub Motor: 48V Brushless Non-gear Hub Motor 3. Rim: Double-wall Aluminium Alloy Rim 4. Rear wheel Bottom bracket: Rear 135mm-142mm, Front 100mm 5. 48VTorque: 20 inch 500W=14NM 1000W=20NM 1500W=22NM 26 inch 500W=16NM1000W=25NM 1500W=30NM 27.5 inch 500W=18NM1000W=28NM 1500W=32NM 28 inch500W=19NM1000W=29NM 1500W=33NM 29 inch500W=20NM1000W=30NM 1500W=34NM 6. RPM: 470 for 48V 500W 1000w 540 for 48V 1500w Display There are 3 options If you select "No Display", there is no display LCD3 and LCD8 display which comes with Brake Regeneration Anti-Charge Function LCD8 display with USB function Controller 48V 500W 1000W option with 12Mosfetcontroller(3) 48V 500W 1000WBluetoothoptionwith 9MosfetBluetoothcontroller(2) 48V 1500W option with 18Mosfetcontroller(4) Bluetooth function controller If you buy a Bluetooth version,you can Scan QR code to download app. then you can controller you ebike with your phone. model 12 Mosfet 18 Mosfet Ratedvoltage DC48V DC48V Ratedcurrent 15A 22A Lowvoltageprotection DC40±0.5V DC40±0.5V Maximumcurrent 30±1A 45±1A Speedset 1-4.2V 1-4.2V Brake input Low-level Low-level size 176*82*41mm 240*82*41mm PAS KT BZ-4(8) Magnet Throttle There are 4 options 1.Half Twist Throttle(default) 2.Thumb Throttle 3.Half Twist Throttle withelectric lock 4.Twist Throttle Power cut-off brake leaver 1.）We ship by EMS ， Russian Post , hongkong post air parcel or China post air parcel. If you need it ship by DHL, FEDEX or UPS,please contact us to pay extra cost. 2. ) Import duties, taxes and charges are not included in the item price.These charges are the buyer’s responsibility. If you need DPD/ XDB shipping to European countries, please Buy the link below with Conversion Kit together. click>>>DPD/XDB<<<. If you have any questions about tax, please contact us. please contact us to check whether you can use this service. 3. )If you have any question after you receive the items,please contact us first. Your satisfaction is our top priority and we are confident that you will be pleased with our services. Packaging Our Factory andWarehouse Certification and Patent
